1. Easy to install.
2. Automatic, convenient, safe and practical.
3. It has the function of power and detection indication.
4. The motion sensor can identify day and night automatically.
5. It has wide detection range made up of up and down, left and right service field.
6. This product is a new type of energy-saving lighting switch,
it adopts high sensitivity detector, integrate circuit and SMT.
7. It utilizes human motion infrared rays as control signal sources,
when one enters the detection field, it will start the controlled load at once.
More pictures on the product
Output: Maximum 1000W incandescent lamp, 100W fluorescent lamp ,
Exhaust fan 100W, Motor 100W, Electric bell 100W
The item can be less sensitive if you go forward the detector,
but it can be sensitive if you go down the for cross section.
If the person stop moving under the motion sensor, it can't light on also.
When it is very hot in summer, then temperature of environment is nearly the same as people, it may not detect well.

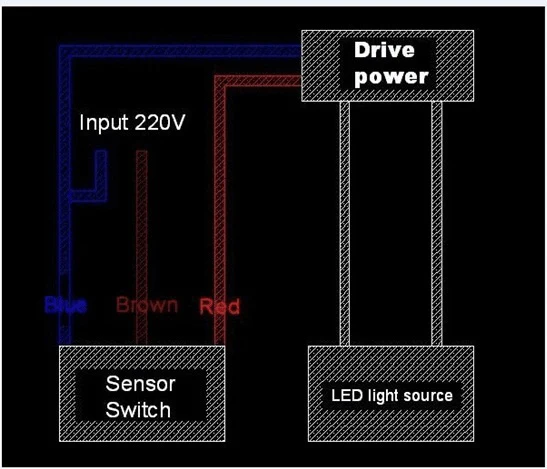

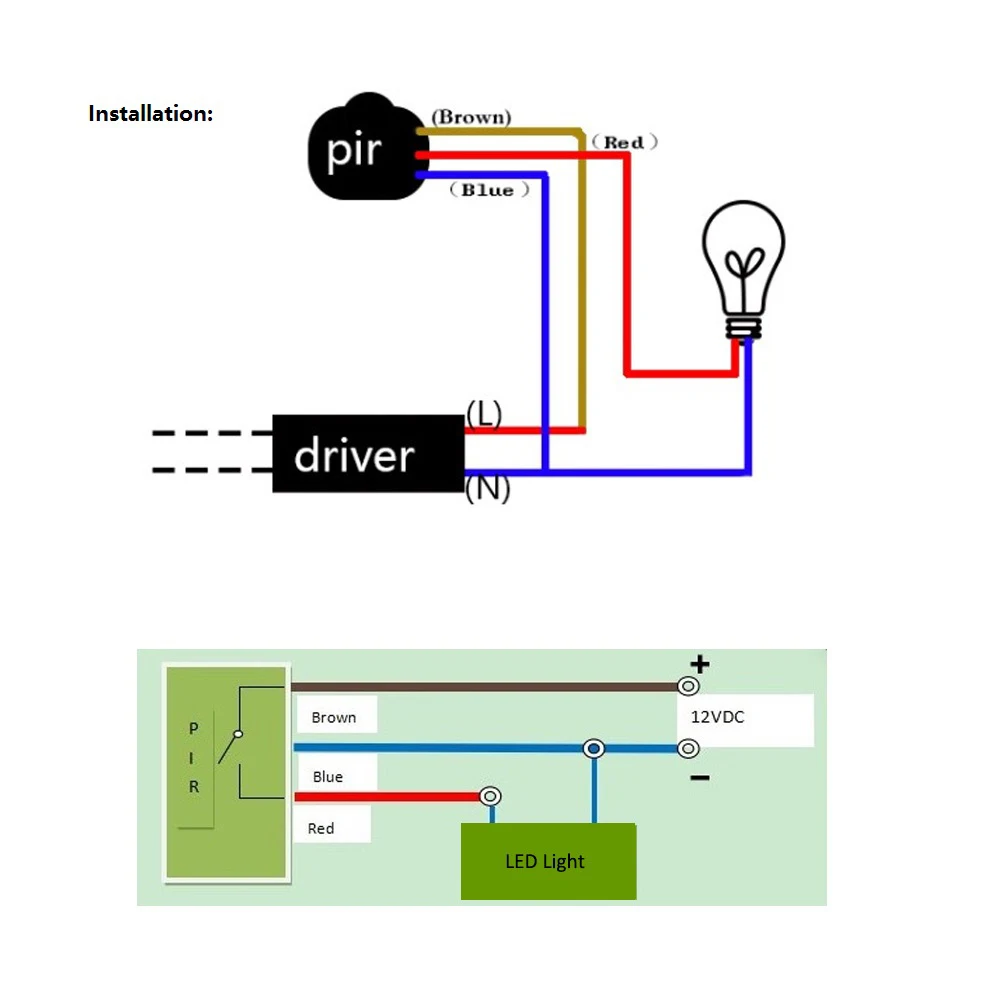

Blue color: Negative line (-)
Brown color: Live wire (+)
Red: Ground wire
For 220v motion sensor, you just provide 220V voltage to sensor,dont need the driver.
Only 12V DC motion sensor need a 220V AC to 12V DC Driver or we said power supply or power adapter.
1 x Motion Sensor
Other Specifications :
