Description
More pictures on the product
Other Specifications :

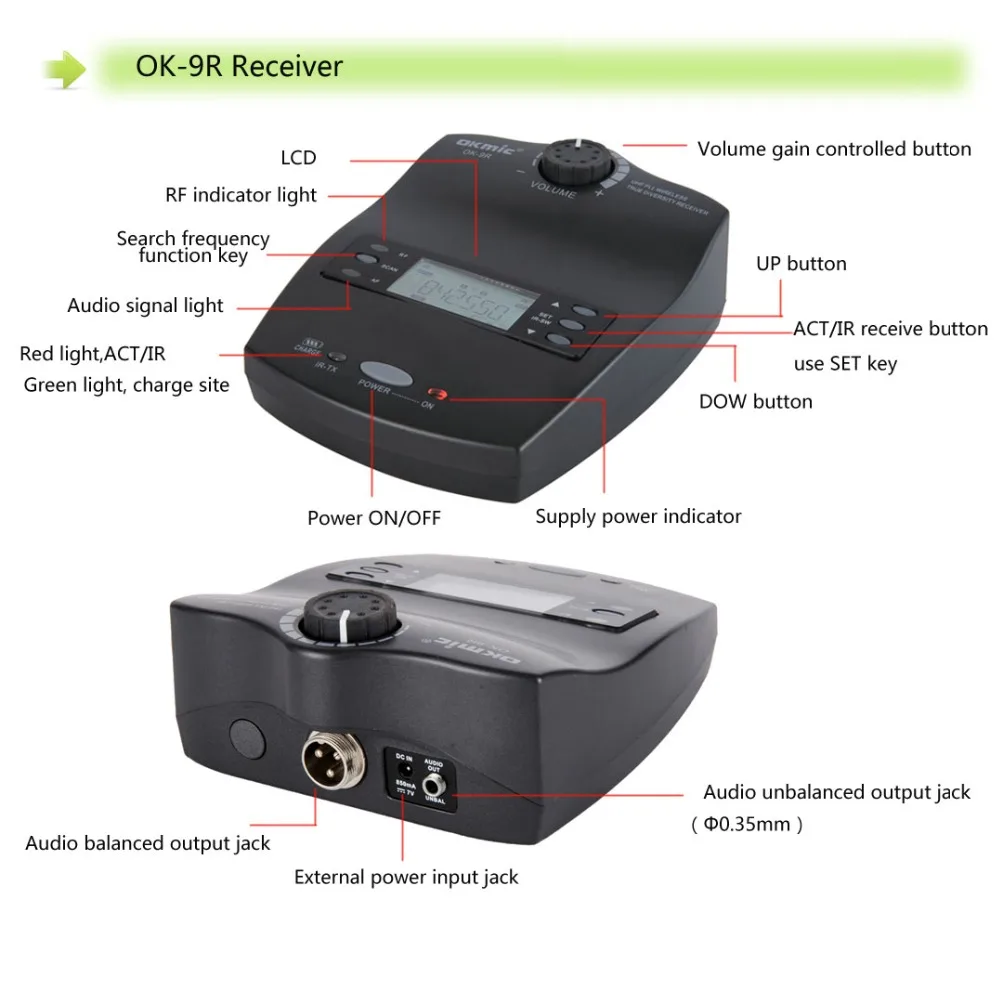

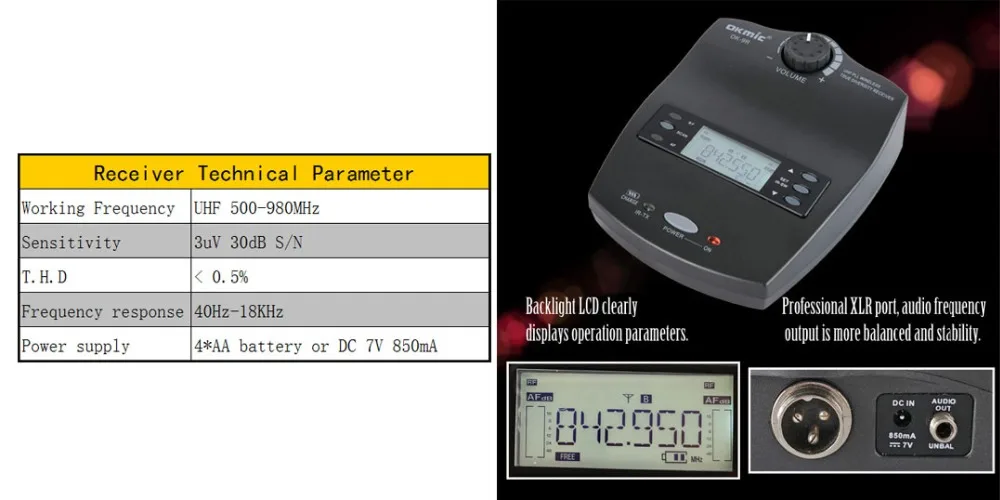

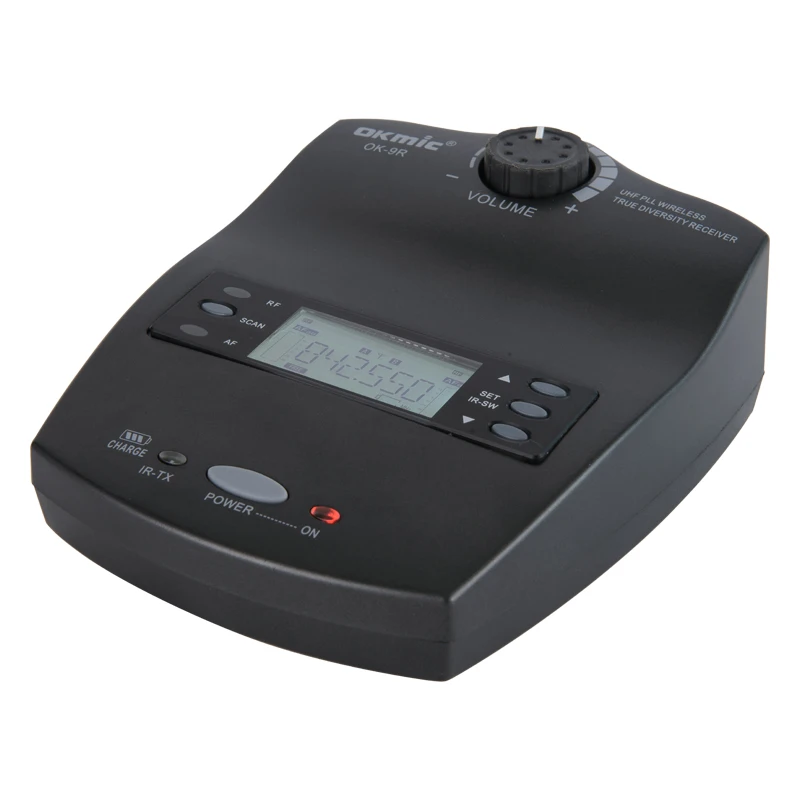

RECEIVER
Frequency range:830-842MHz
Band width:12MHz/36MHz,32/96 channels for free
selection ACT/IR function
With PLL combined technology
Frequency stability: ¡À3ppm
Frequency response:50-16000Hz
S/N ratio:>105dB(12dB S/N AD)
T.H.D:<0.5% @ 1KHz
Mute mode:Noise + tone code squelch control Lock
Lock squelch control navigation
Noise locked+pilot tone locked With LCD digital display
Audio output voltage:-12dB
Input power voltage:DC 3V 450mA

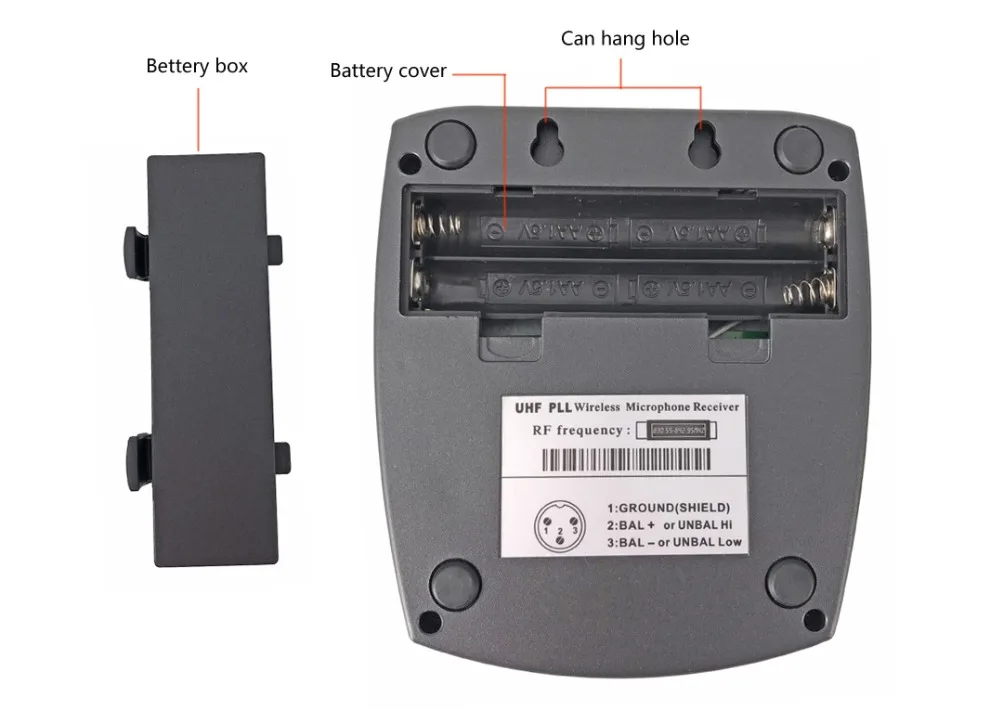

Battery type:2*AA 1.5V Alkaline Battery
Operating time: ¡Ý6h
Dimensions:(L)125 X (W)78 X (H)43mm
Weight(with the batteries):205g

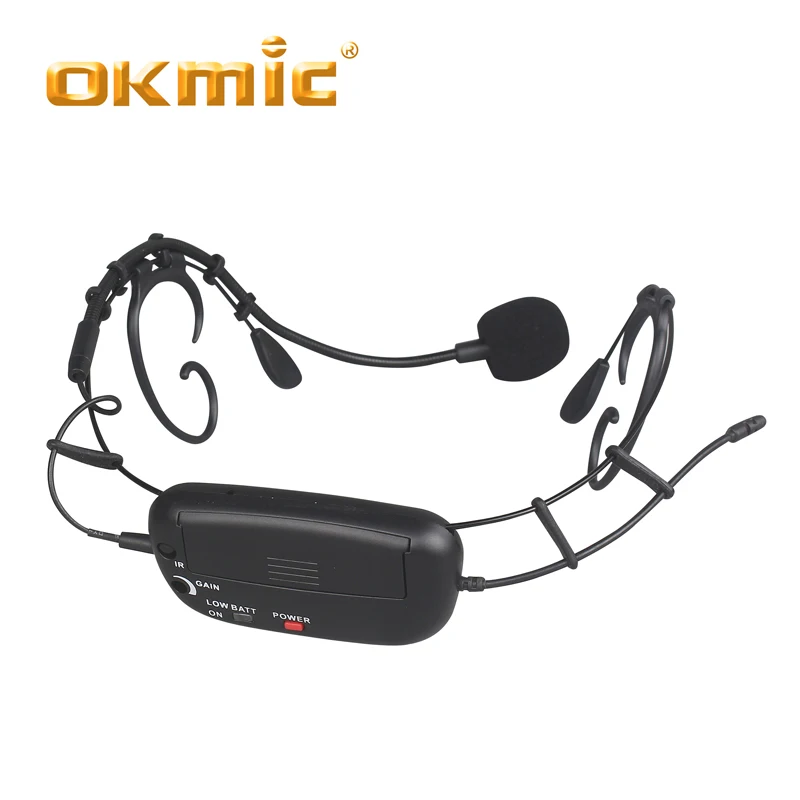

TRANSMITTER
Frequency range:830-842MHz
Band width:12MHz/36MHz,32/96 channels for free
selection ACT/IR function
PLL With PLL combined technology
Frequency stability:¡À3ppm
RF output power:5mW
Squrious rejection:<-60dBc
Max.deviation range: ¡À45KHz
Frequency response:50-16000Hz
T.H.D:<0.5% @ 1KHz
Sensitivity selection:0dB or -10dB
Battery type:1*AAA 1.5V /Alkaline Battery
Operating time:≥6h
Weight(with the batteries):55g
What`s in the box?
-
OK-9R Receiver 1 pcs;
-
OK-16 Microphone TRANSMITTER 1pcs;
-
Power Adapter 1pcs
-
5 alkaline batteries 2(not include )
-
6.3 audio cable 1
-
Manual 1
